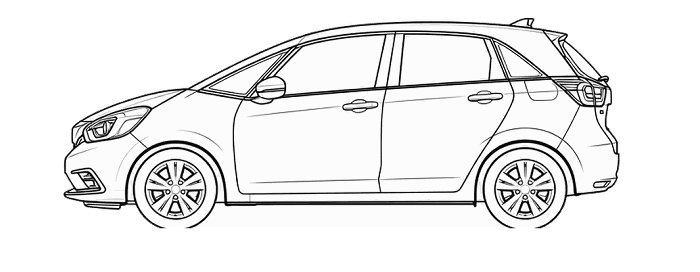

HondaJazz2020–2026Tyre Pressures185/55R16
Recorded fitment model years: 2020–2026
LOADECOFULLY
LADENkPaPSIkPaPSI2303323033————————185/55R16108 Nm
Standard Load Tyre Pressures
Front: 33 PSI (2.3 bar / 230 kPa) - Rear: 33 PSI (2.3 bar / 230 kPa)
Tyre Size Converter - Wheel View
Side view comparison
Tread view comparison
View recommended tyre size conversions
Diameter matches only: confirm approved sizes, wheel width, clearance, load and speed ratings before fitting. Vehicle-specific limits may be stricter.
Results compare nominal sizes. They do not confirm vehicle or wheel fitment.
Wheel Nut Torque Setting
108 Nm
Follow the numbered order with a torque wrench and the vehicle manufacturer’s procedure.
For other bolt counts, follow the vehicle handbook.

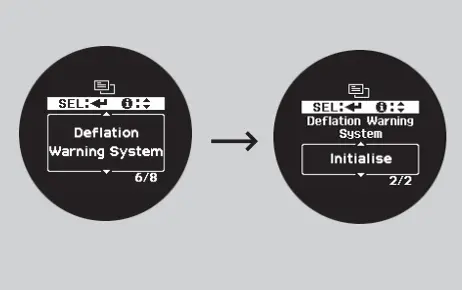

TPMS / Tyre Pressure Monitor Reset
You can calibrate the system from the customized features on the multi-information display.
1. Press the button until (customize settings) appears on the display, then press the SEL/RESET button.
2. Press the button until Deflation Warning System appears on the display, then press the SEL/RESET button.
The display switches to the
customization setup screen, where you can select Cancel or Initialise.
3. Press the button and select
Initialise, then press the SEL/RESET button.
Completed screen appears, then the display returns to the customization menu screen.
4. Press the button until (Exit)
appears on the display, then press the SEL/RESET button.
Deflation Warning System cannot be calibrated if a compact spare tyre is installed.
The calibration process requires approximately 30 minutes of cumulative driving at speeds between 40–100 km/h (25–62 mph). During this period, if the ignition switch is turned on and the vehicle is not moved within 45 seconds, you may notice the low tyre pressure indicator comes on briefly. This is normal and indicates that
the calibration process is not yet complete.
If the snow chains are installed, remove them before calibrating the deflation warning system.
If the low tyre pressure/deflation warning system indicator comes on even when the properly inflated specified regular tyres are installed, have the vehicle
checked by a dealer.
We recommend that the tyres be replaced with the same brand, model, and size as the originals. Ask a dealer for details.
